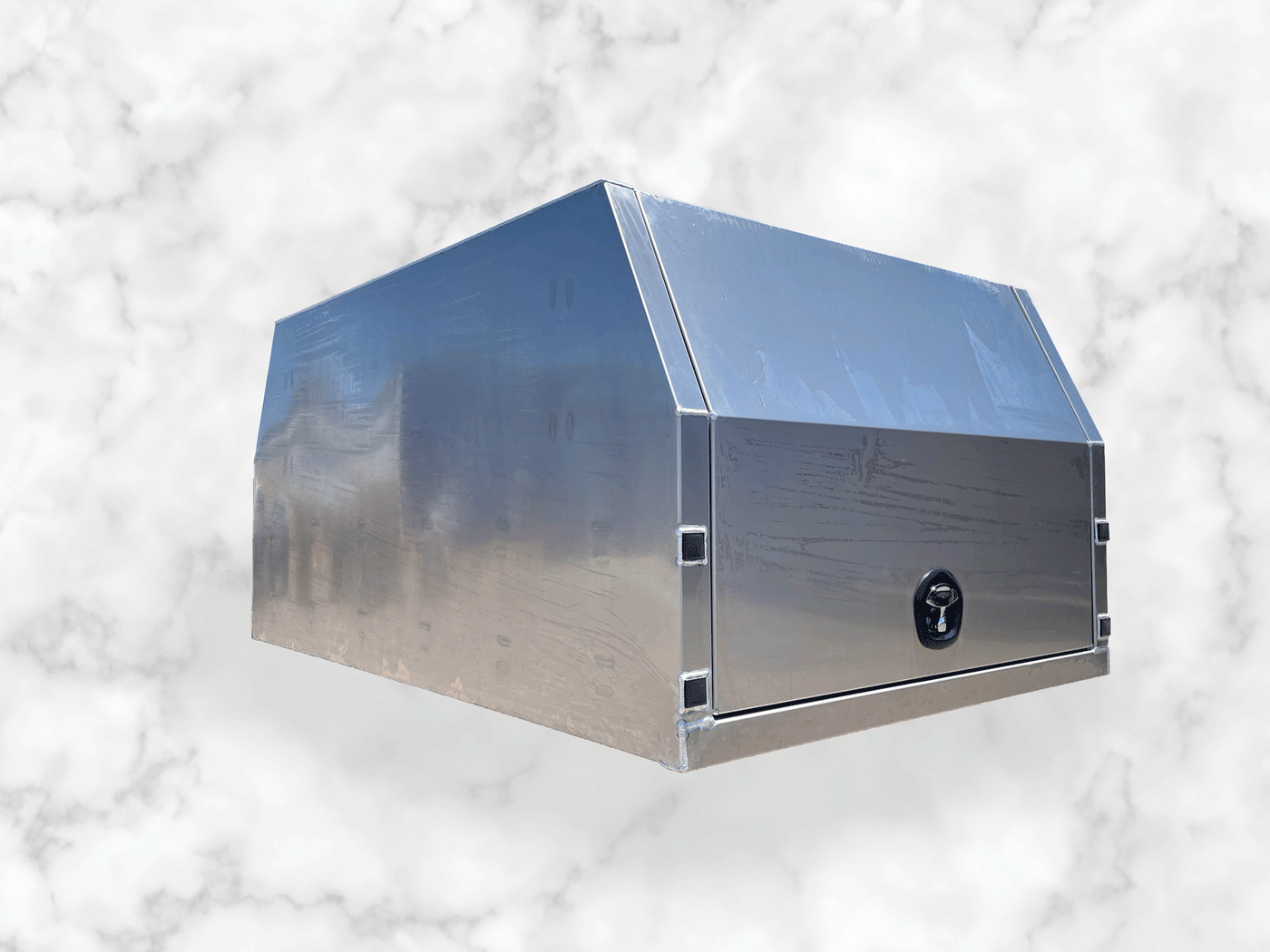

1200mm Alloy J/O Canopy

Built for the tradie rack and tools or a roof top tent. The jack-off canopy runs its own self-supported floor with 40x40mm SHS bracing throughout, so it can stand on jack legs with your gear still inside — wind the legs down, drive out from under it, and your tray is back for the week. Laser cut from CAD drawings for a consistent build every time, fully TIG welded, full length stainless piano hinges and keyed-alike whale tail compression locks that pull tight on the rubber seal. Sold factory direct from Burton with an 18 month warranty on the whole box.

Material

2.5mm marine grade 5052 aluminium

Construction

Laser cut, fully TIG welded

Finish

Smooth raw alloy

Structure

Braced floor with jack points — holds your gear while on legs

Doors

Reinforced, heavy duty gas struts

Hinge

Full length stainless steel piano hinge

Locks

Lockable whale tail compression locks

Sealing

Weatherproof rubber seal

Roof load

350kg+

Size

1200 × 1770 × 850mm

Warranty

18 months, entire box

Every standard and jack-off box is 1770mm wide and 850mm high; LC79 boxes run 1000mm high. Measure your tray's internal width against 1770mm before ordering, or we can measure on site.

Pairs with our wind-down jack-off legs ($550) and quick-release canopy clamps ($250) — wind the legs down, drive out from under it, and the canopy stands on its own with your gear inside.
