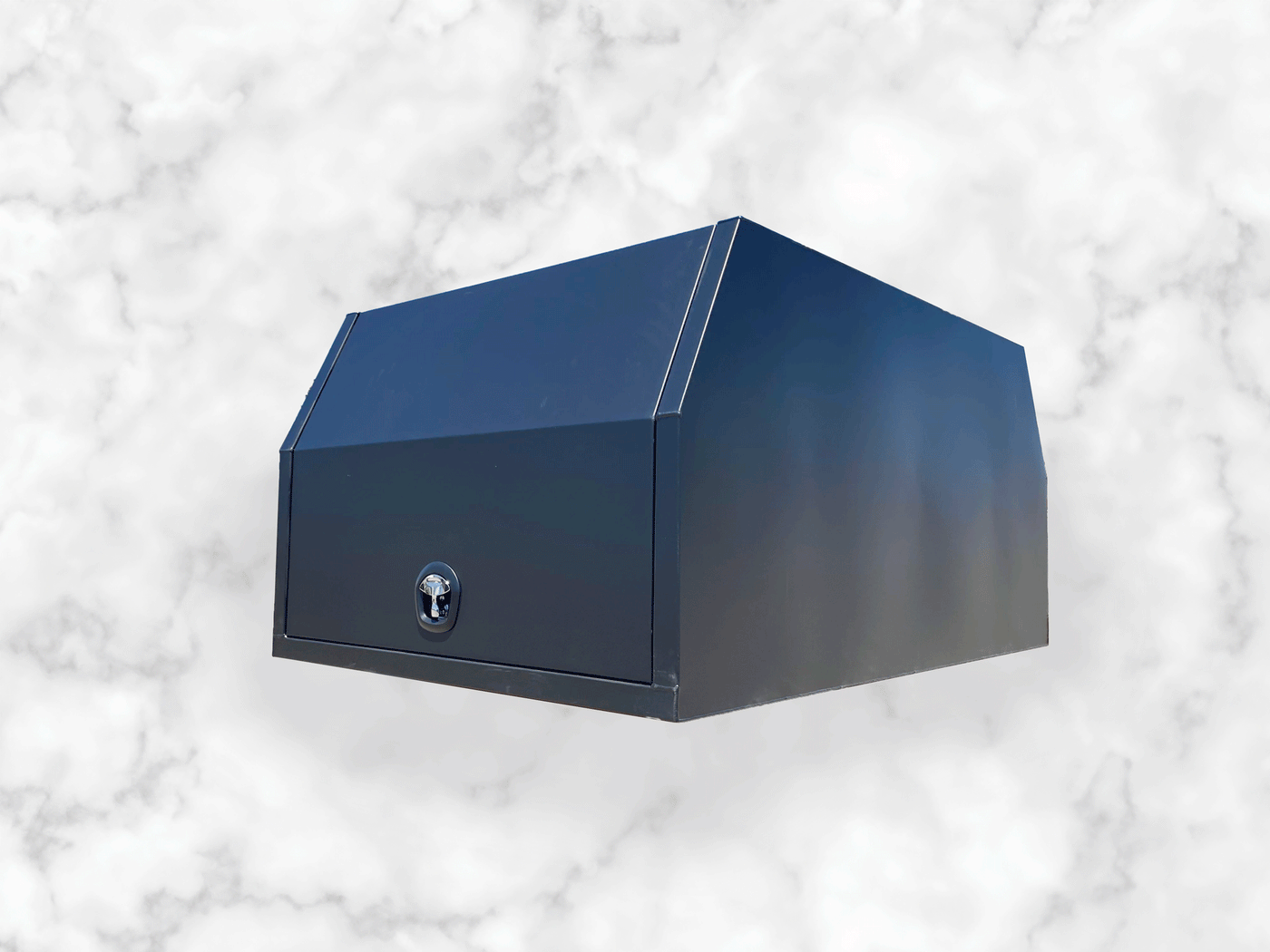

1200mm Black Canopy
Standard gullwing canopy built to be a permanent fixture on your tray. 2.5mm marine grade 5052, laser cut and fully TIG welded.
Freight: Australia-wide, quoted on your postcode.Install: DIY or fitted by us — send photos of your tray for a price.
Description
The standard canopy is our lighter duty box, designed to bolt permanently to your tray. The floor relies on your tray for support, which keeps the weight and the price down. It's laser cut from CAD drawings for a consistent build every time, fully TIG welded, and fitted with a full length stainless piano hinge, heavy duty gas struts and lockable whale tail compression locks that pull tight on the rubber seal. Sold factory direct from Burton with an 18 month warranty on the whole box.
Specifications
- Material
- 2.5mm marine grade 5052 aluminium
- Construction
- Laser cut, fully TIG welded
- Finish
- Powder coated black
- Doors
- Reinforced, heavy duty gas struts
- Hinge
- Full length stainless steel piano hinge
- Locks
- Lockable whale tail compression locks
- Sealing
- Weatherproof rubber seal
- Roof load
- 300kg+
- Size
- 1200 × 1770 × 850mm
- Warranty
- 18 months, entire box
Dimensions
- A Length
- 1200mm
- Width
- 1770mm
- B Height
- 850mm
Every standard and jack-off box is 1770mm wide and 850mm high; LC79 boxes run 1000mm high. Measure your tray's internal width against 1770mm before ordering, or we can measure on site.
Shipping & returns
Pickup from 1170–1172 Pt Wakefield Rd, Burton SA, or freight Australia-wide quoted on your postcode. See our returns and refund policy for change-of-mind terms and our warranty page for cover.
